Vacuum Suction Cup S1 type

Vacuum suction cups
• Perform actions such as moving, placing, positioning, and rotating objects, and are often used in automation mechanisms.

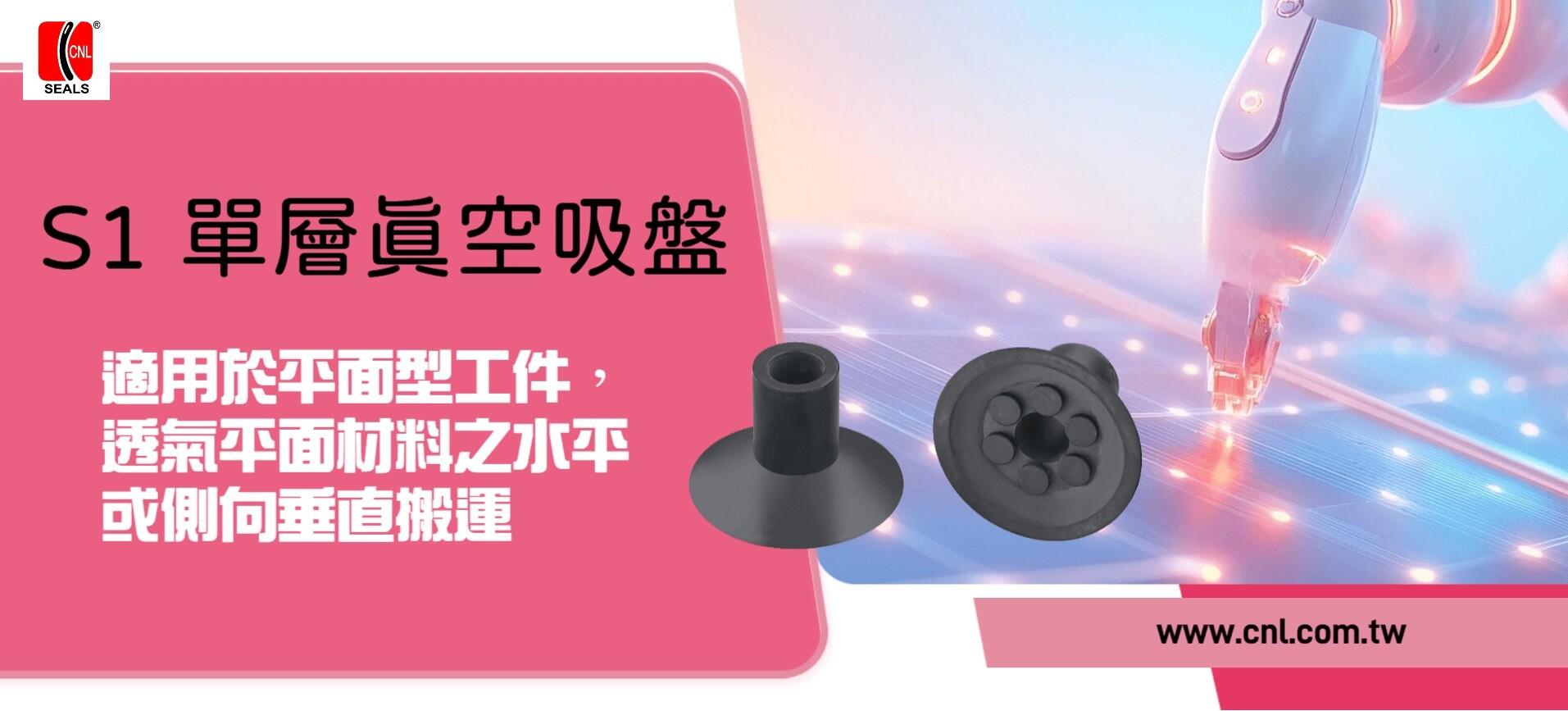

• The S1 single-layer vacuum suction cup is suitable for horizontal or sideways vertical transportation of flat workpieces and breathable flat materials.
• For example: cartons, plastic plates, metal plates and micro electronic parts...etc.

Cup Outer Diameter (mm)	Characteristics	Material	Common Applications
0.2 ~ 3 mm	Ultra-miniature, very small contact area	NBR, SICICONE, FKM, etc.	Semiconductor, precision electronics
4 ~ 5 mm	Small size, high precision	NBR, SICICONE, FKM, etc.	SMT pick-and-place, assembly lines
6 ~ 7 mm	Small general-purpose	NBR, SICICONE, FKM, etc.	Electronics, medical components
8 mm	Medium-small size, stable suction	NBR, SICICONE, FKM, etc.	Packaging, automation gripping
9 ~ 10 mm	Common small size, stronger suction	NBR, SICICONE, FKM, etc.	Inspection equipment, electronics
11 ~ 14 mm	Medium size, balance between stability and flexibility	NBR, SICICONE, FKM, etc.	Manufacturing, assembly lines
15 ~ 16 mm	Mid-size with good load capacity	NBR, SICICONE, FKM, etc.	Machining, electronic modules
17 ~ 20 mm	Standard general-purpose size	NBR, SICICONE, FKM, etc.	Automation, industrial handling
21 ~ 25 mm	Medium-large, stronger suction	NBR, SICICONE, FKM, etc.	Automotive parts, packaging
26 ~ 30 mm	Medium-large, handles heavier loads	NBR, SICICONE, FKM, etc.	Machinery, warehousing
31 ~ 40 mm	Large size, handles heavier objects	NBR, SICICONE, FKM, etc.	Assembly, logistics
41 ~ 80 mm	Extra-large, wide suction area	NBR, SICICONE, FKM, etc.	Industrial automation, heavy-duty lifting
