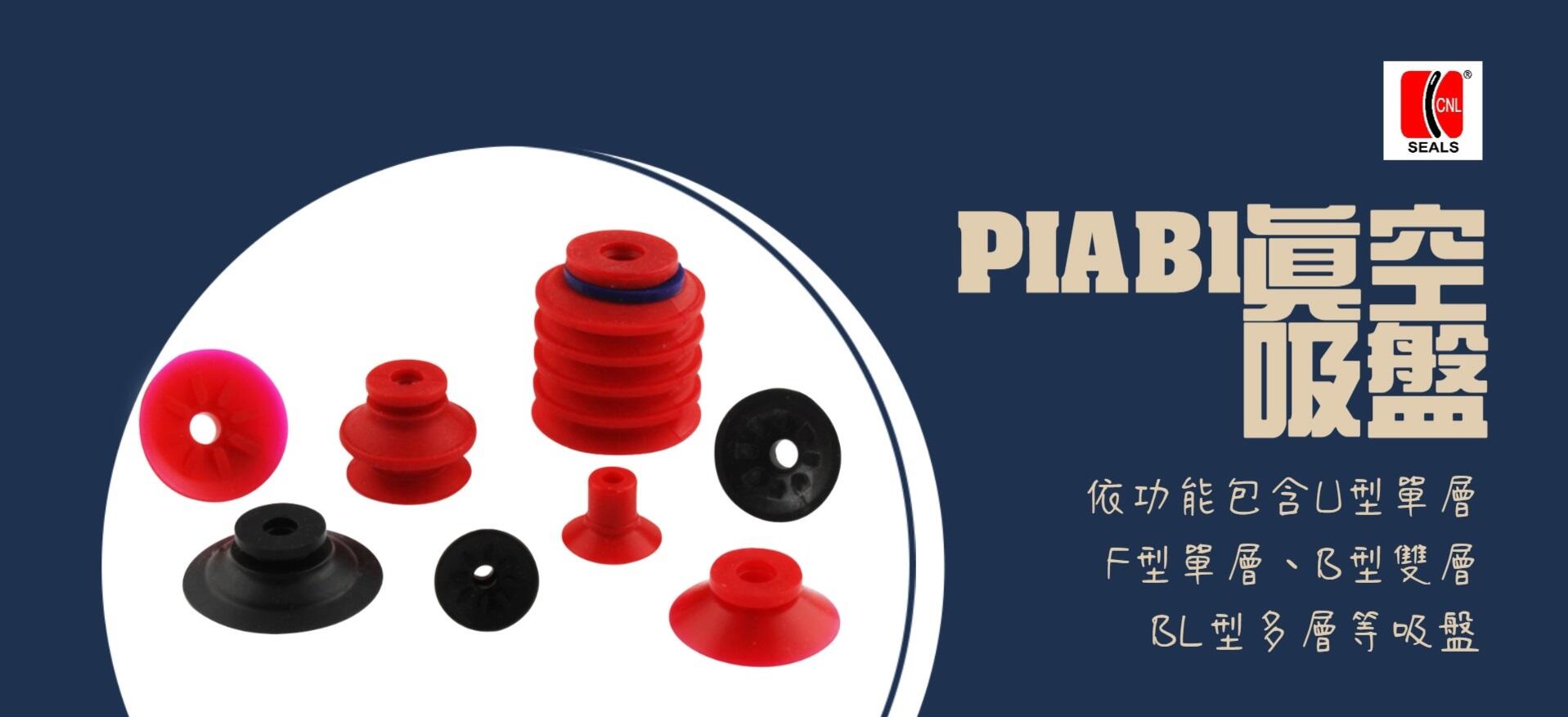

Vacuum Suction Cup PIAB1 series
Vacuum Suction Cup PIAB1 series
• Function：Vacuum suction cups can move, place, position, rotate, etc.objects and are often used in automation mechanisms.
• Type：U-type single-layer, F-type single-layer, B-type double-layer and BL-type multi-layer suction cups according to their functions.
• Material：NBR(Nitrile Rubber), SICICONE, FKM(Fluoro Carbon Rubber), etc.
• Applied industry：Applied to paper, plastic plates, steel plates, balls, curved workpieces, food preparation bags, quartz, wafers, optoelectronics, packaging, medical equipment, etc.
| Model | Structural Features | Material Options | Suitable Workpieces | Common Applications |
|---|---|---|---|---|
| PIAB1-U Single Layer | Standard flat lip design, simple structure with stable suction | NBR(Nitrile Rubber), SICICONE, FKM(Fluoro Carbon Rubber), etc | Flat or smooth surfaces | Automation equipment, electronic component handling |
| PIAB1-F Single Layer | Thin lip design with strong sealing and fast response | NBR(Nitrile Rubber), SICICONE, FKM(Fluoro Carbon Rubber), etc | Films, labels, plastic sheets | Packaging machines, printing lines, laminating systems |
| PIAB1-B Double Layer | Dual-layer structure with excellent elasticity, ideal for uneven surfaces | NBR(Nitrile Rubber), SICICONE, FKM(Fluoro Carbon Rubber), etc | Curved or irregular workpieces | Automotive interior parts, glass, metal components |
| PIAB1-BL Multi-Layer | Multi-bellows design providing strong compensation capability | NBR(Nitrile Rubber), SICICONE, FKM(Fluoro Carbon Rubber), etc | Workpieces with height differences or deformation | Semiconductor, precision electronics, food packaging lines |
